Cross Coupling Cable Protector

Your current location: HOME >> Products >> ESP cable protector

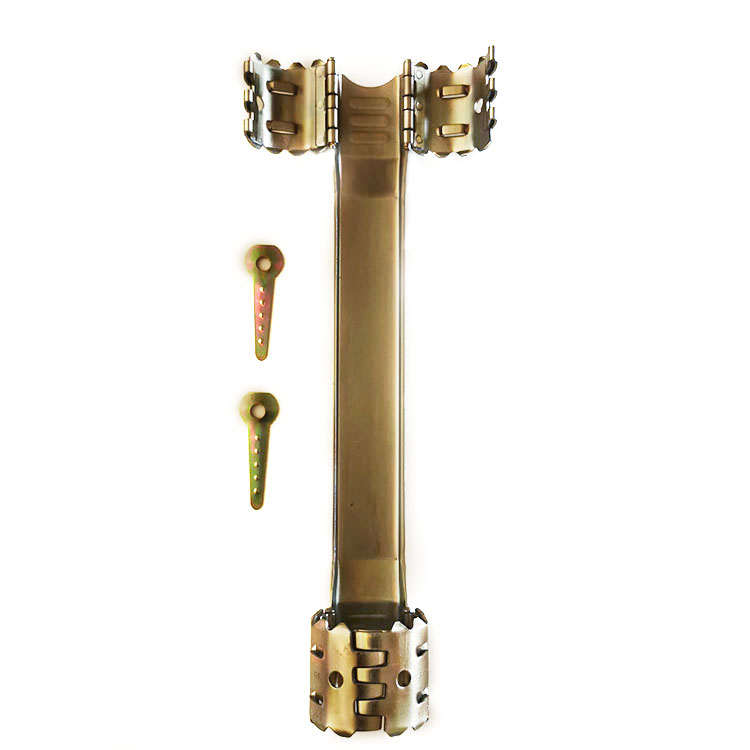

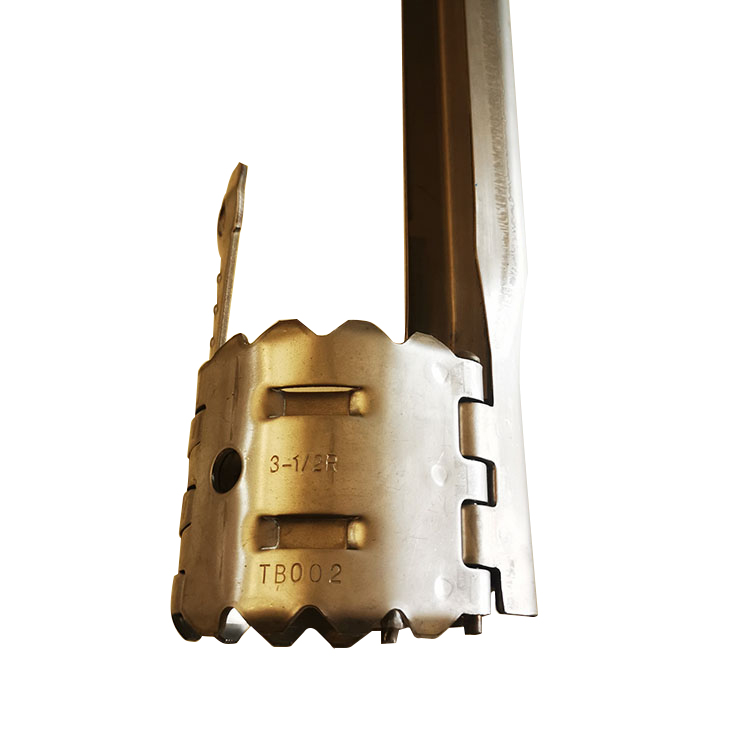

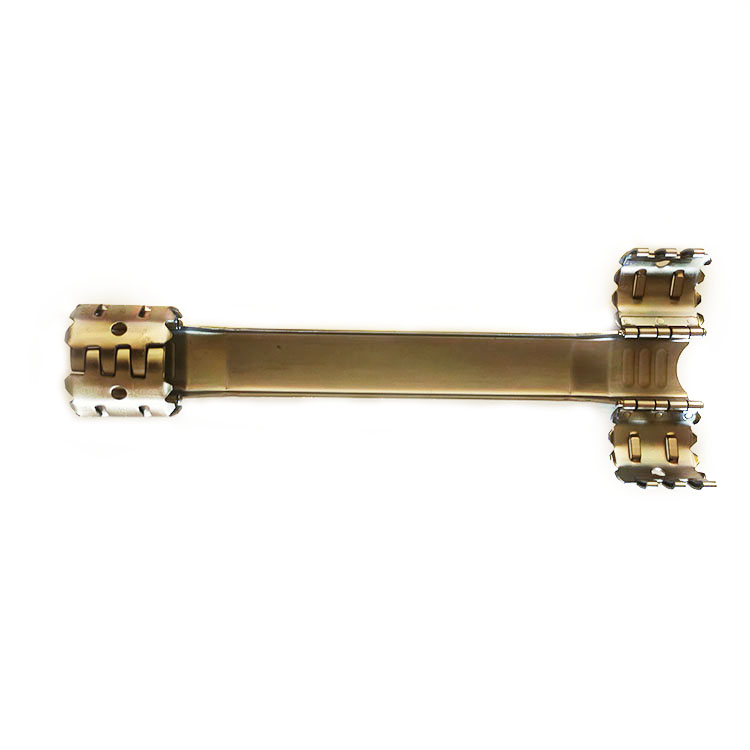

Cross Coupling Cable Protector

Detailed introduction

SHANDONG UNITOOLS MACHINERY CO.,LTD

UNITOOLS designs and manufactures durable downhole cable and Lines protectors to safely convey and eciently secure virtually any configuration of control lines or cables into or out of well-bores. We uses an all-round engineering approach to develop cable protectors that can be customised or configured for a range of tubing sizes, cable sizes and cable types. These protectors have a slick profile and can be installed or removed easily and rapidly. Customised configurations and alternative materials are available upon request.



Features:


Engineered for optimal down-hole protection of ESP conductors

Strategically placed contact points for superior grip

Holds cables in place with minimal slipping and rotation

Galvanized coating for maximum rust protection

Choice of hydraulic or manual tools for installation and removal

Materials and design can be customized to user specifications



Applications :

• ESP cable

• Subsurface safety valves control line

• Chemical injection line

• Permanent Gauges

• Intelligent Wells

• Fiber Optic

• Coiled tubing





Cable Protector Description

Tube Size

Cable Size

Cable Size

2-3/8R6-8

2-3/8"

Round

ø6-8mm

2-3/8F11/34

2-3/8"

Flat

11mm SQUARE

2-3/8R32-34

2-3/8"

Round

ø32-34mm

2-7/8R6-8

2-7/8"

Round

ø6-8mm

2 -7/8R30-33

2-7/8"

Round

ø30-33mm

2-7/8R30-33

2-7/8"

Round

ø34-37mm

2-7/8F11/34

2-7/8"

Flat

11mm SQUARE

2-7/8F16-19/56

2-7/8"

Flat

16-19mm SQUARE

2-7/8F16-19/70

2-7/8"

Flat

16-19mm SQUARE

3-1/2R6-8

3-1/2"

Round

ø6-8mm

3-1/2R30-33

3-1/2"

Round

ø30-33mm

3-1/2R34-37

3-1/2"

Round

ø34-37mm

3-1/2R38-42

3-1/2"

Round

ø38-42mm

3-1/2F11/34

3-1/2"

Flat

11mm SQUARE

3-1/2F16-19/60

3-1/2"

Flat

16-19mm SQUARE

3-1/2F19-23/70

3-1/2"

Flat

19-23mm SQUARE

4-1/2R6-8

4-1/2"

Round

ø6-8mm

4-1/2R34-37

4-1/2"

Round

ø34-37mm

4-1/32R38-42

4-1/2"

Round

ø38-42mm

4-1/2F11/34

4-1/2"

Flat

11mm SQUARE

4-1/2F16-19/60

4-1/2"

Flat

16-19mm SQUARE

4-1/2F19-23/60

4-1/2"

Flat

19-23mm SQUARE

5-1/2R6-8

5-1/2"

Round

ø6-8mm

5-1/2R34-37

5-1/2"

Round

ø34-37mm

5-1/2R38-42

5-1/2"

Round

ø38-42mm

5-1/2F11/34

5-1/2"

Flat

11mm SQUARE

5-1/2F11-16/56

5-1/2"

Flat

11-16mm SQUARE

5-1/2F16-19/70DUAL

5-1/2"

Flat

19-23mm SQUARE

7R6-8

7"

Round

ø6-8mm

7F11/34

7"

Flat

11mm SQUARE
